Brand Name : Innolux
Model Number : F065A21-6T1
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : F065A21-6T1
Diagonal Size : 6.5"
Panel Type : a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution : 720(RGB)×1600 269PPI
Pixel Format : RGB Vertical Stripe
Active Area : 67.932(W)×150.96(H) mm
Designed For : Mobile Phone
Work Mode : AAS, Normally Black, Transmissive
Response : 35 (Max.)(Tr+Td) ms
Refresh Rate : 60Hz

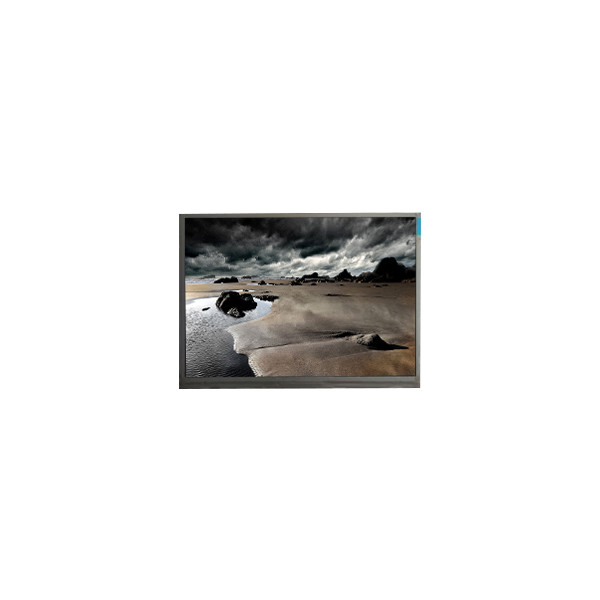

F065A21-6T1 6.5 inch 720*1600 LCD Panel Display
F065A21-6T1 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F065A21-6T1 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1600 269PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.932(W)×150.96(H) mm |
| Bezel Opening | - |
| Outline(mm) | 69.932 × 156.36× 0.32 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 35 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.16+0.16 mm |
| Transmissivity | 3.58% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 70%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch, I²C/SPI |
| Driver IC list | Suggest COG ILI9882N |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
F065A21-6T1 LCD Panel Shipping and Package :

Q: How to make payment of F065A21-6T1 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of F065A21-6T1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of F065A21-6T1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
|   |
| F065A21-6T1 6.5 inch 720*1600 LCD Panel Display Images |
